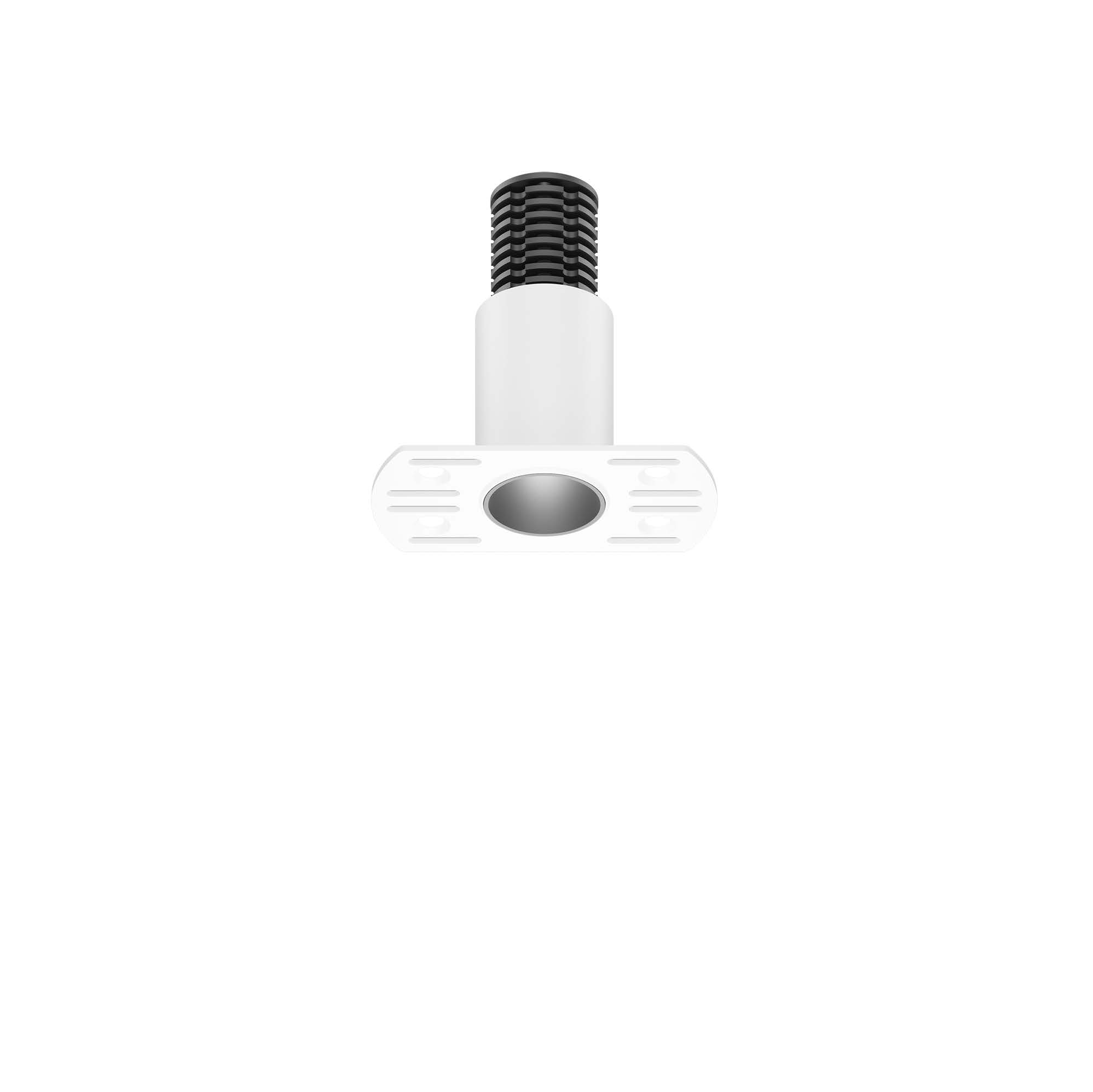

60.04012 MINI Recessed Downlight
| Connected Load | 7.5W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 17D/24D/36D/54D |
| Cut Out | 40mm |

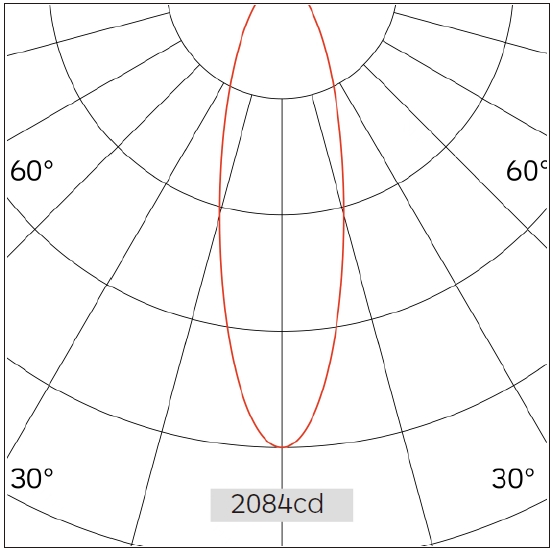

| Light Distribution | 60.04012 Mini Recessed Downlight |
| Luminous Flux Of The Luminaire | 444lm |
| Luminaire Efficacy | 59.2lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.4Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 24° | ||
| 1 | 2084.43 | 0.43 |
| 2 | 521.11 | 0.86 |
| 3 | 231.60 | 1.28 |
| 4 | 130.28 | 1.71 |
| 5 | 83.38 | 2.14 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories
Download
Photometric Files

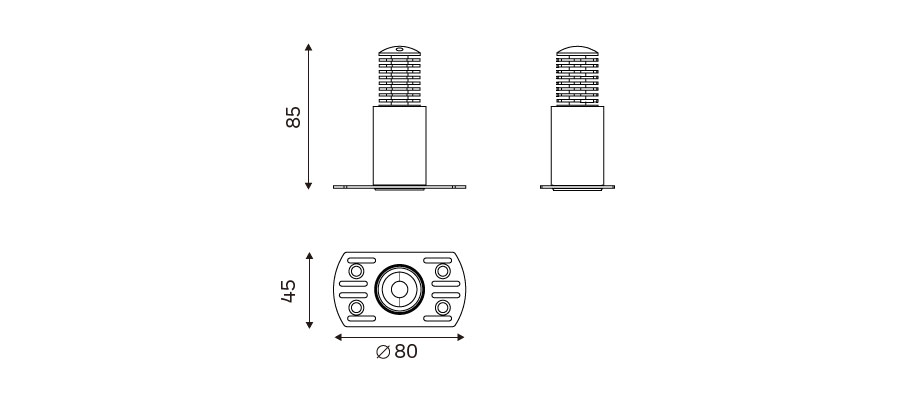

Technical Drawings
