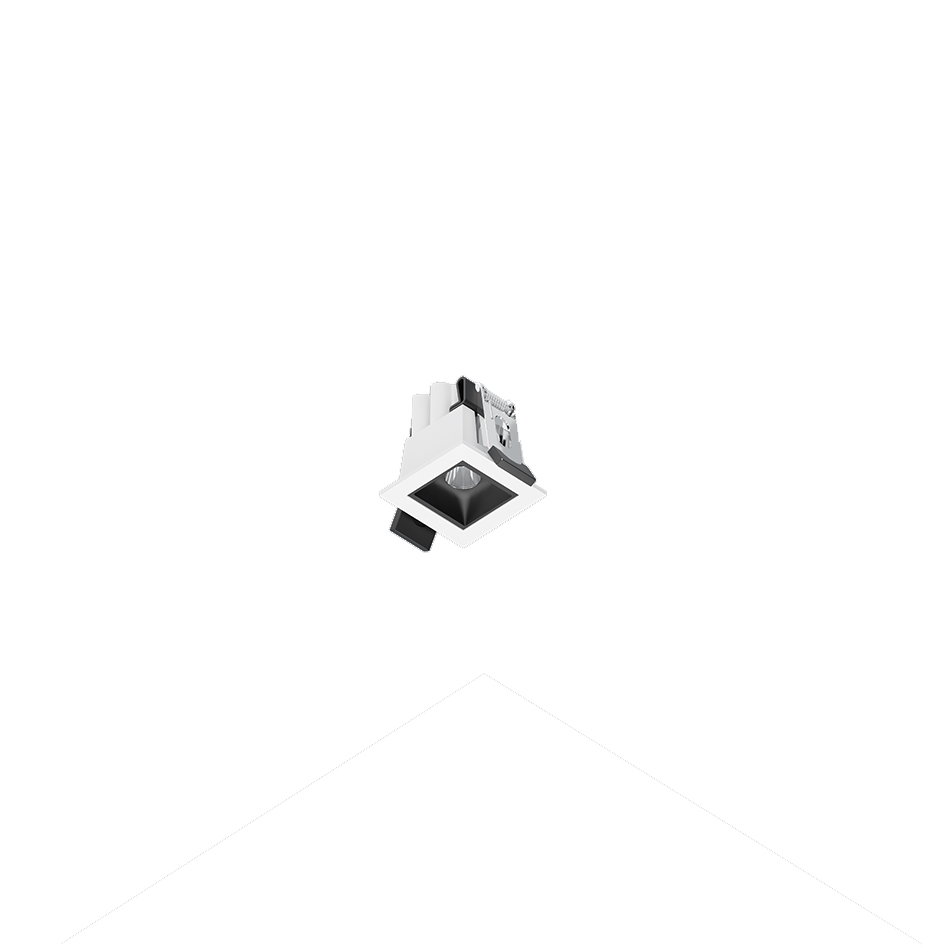

51.03816 NIME Recessed Ceiling Light
| Connected Load | 2.2W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | Reflector |
| Beam Angle | 16D/32D/47D |
| Cut out | 38*38mm |

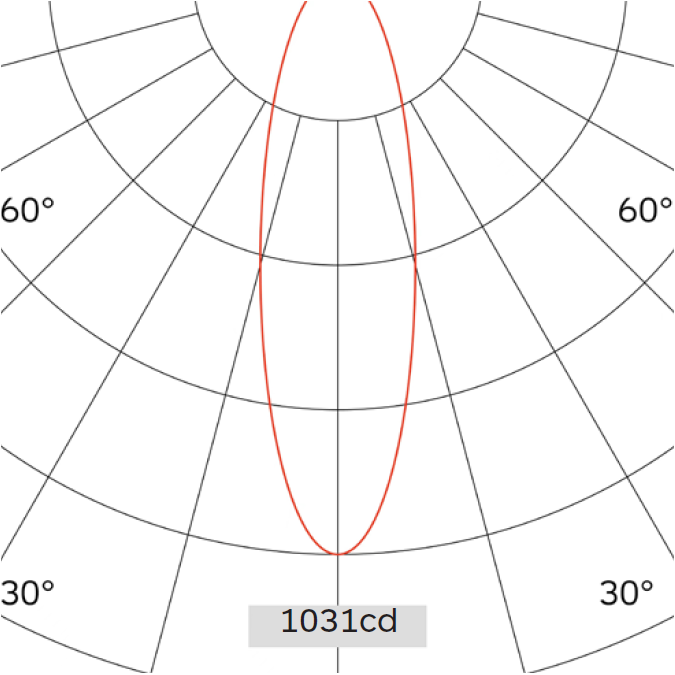

| Light Distribution | 51.03816 |
| Luminous Flux Of The Luminaire | 131lm |
| Luminaire Efficacy | 60lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | SMD |
| Dimming Method | Triac/1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.1Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 17° | ||
| 1 | 748.11 | 0.29 |
| 2 | 187.03 | 0.58 |
| 3 | 83.12 | 0.87 |
| 4 | 46.76 | 1.16 |
| 5 | 29.92 | 1.45 |
NIME is usually used for basic lighting and important lighting in exhibition venues. Provides minimalistic and stylish lighting effects. It also has three beam angles, which can meet the lighting needs of various projects.
Suitable accessories
Photometric Files

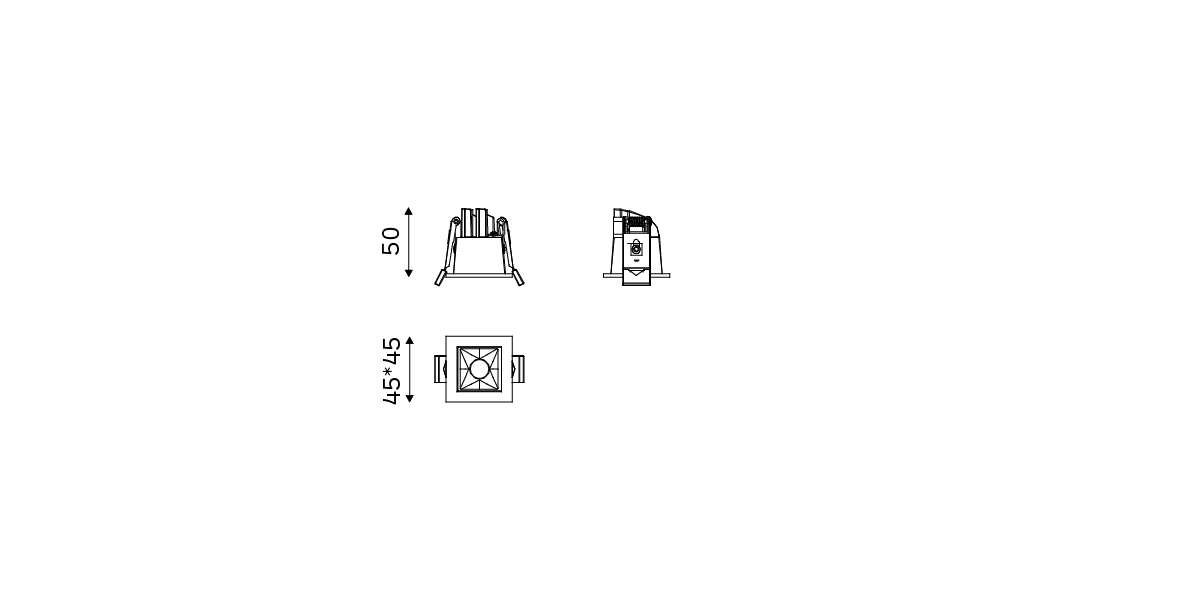

Technical Drawings
