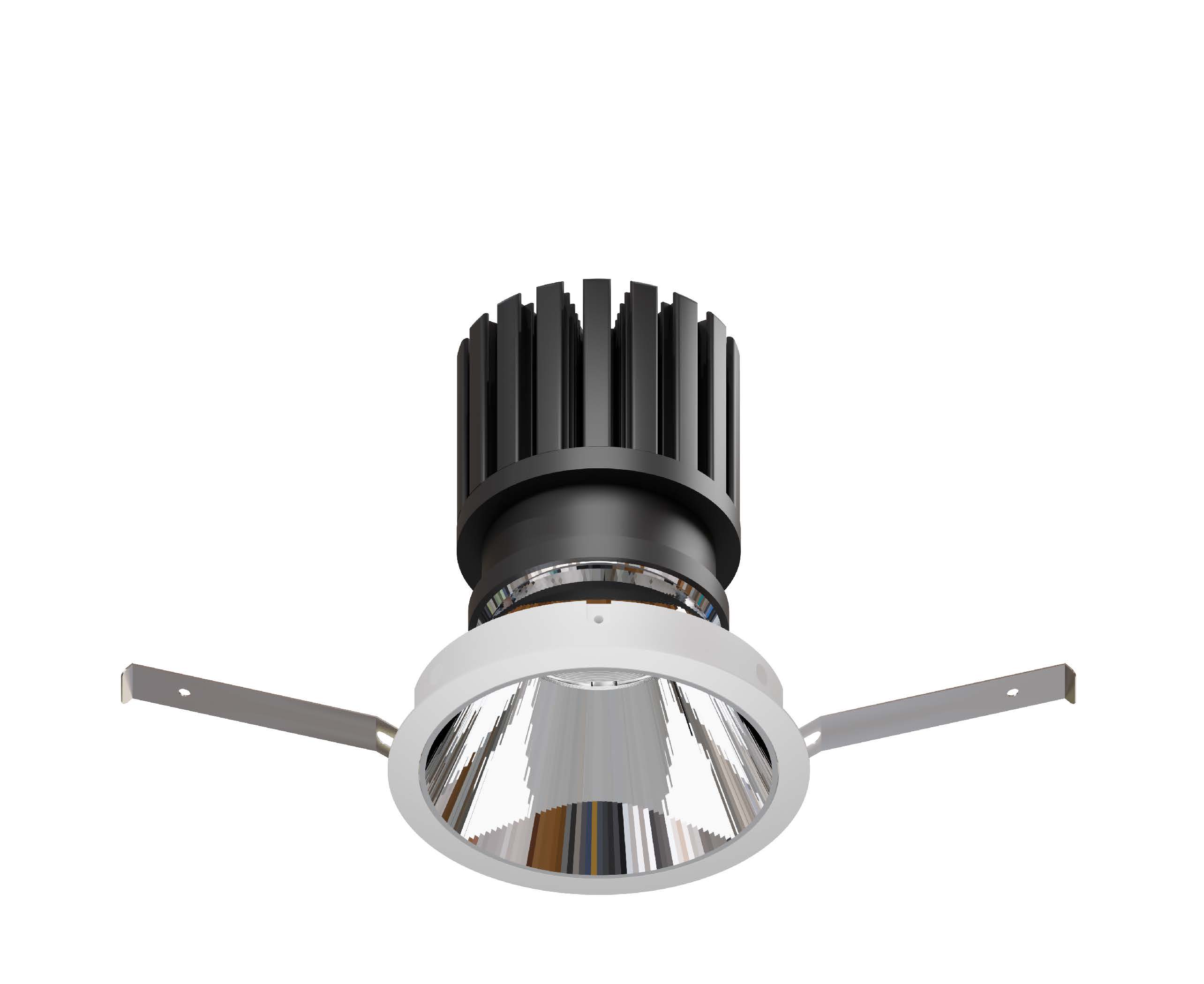

51.10012 FLEXI Recessed Downlight
| Connected Load | 28W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 25D/31D/42D/49D |
| Cut Out | 100mm |

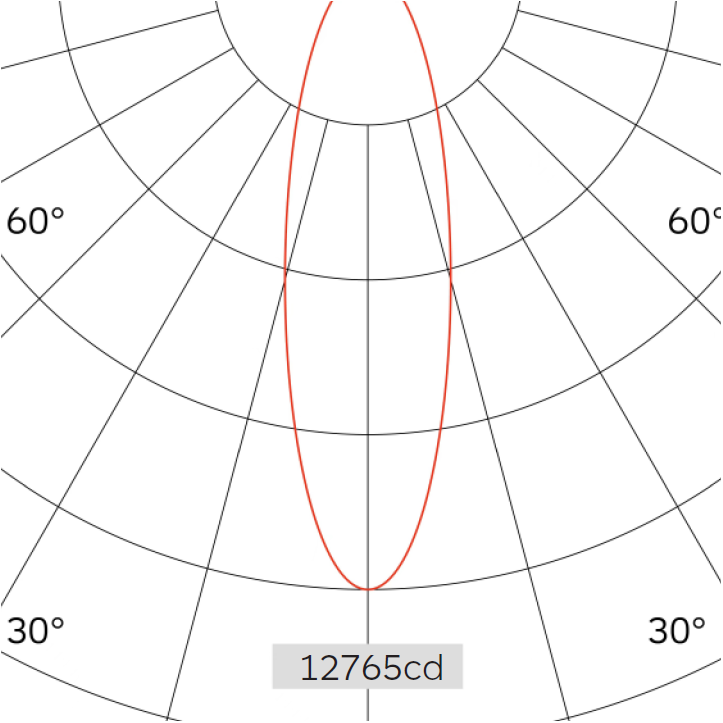

| Light Distribution | 51.10012 FLEXI Recessed Downlight |
| Luminous Flux Of The Luminaire | 3081lm |
| Luminaire Efficacy | 116lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Matt White/ Matt Black |
| Weight | 0.9Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 25° | ||
| 1 | 12765.12 | 0.45 |
| 2 | 3191.28 | 0.90 |
| 3 | 1418.35 | 1.36 |
| 4 | 797.82 | 1.81 |
| 5 | 510.60 | 2.26 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories
Photometric Files
Technical Drawings
