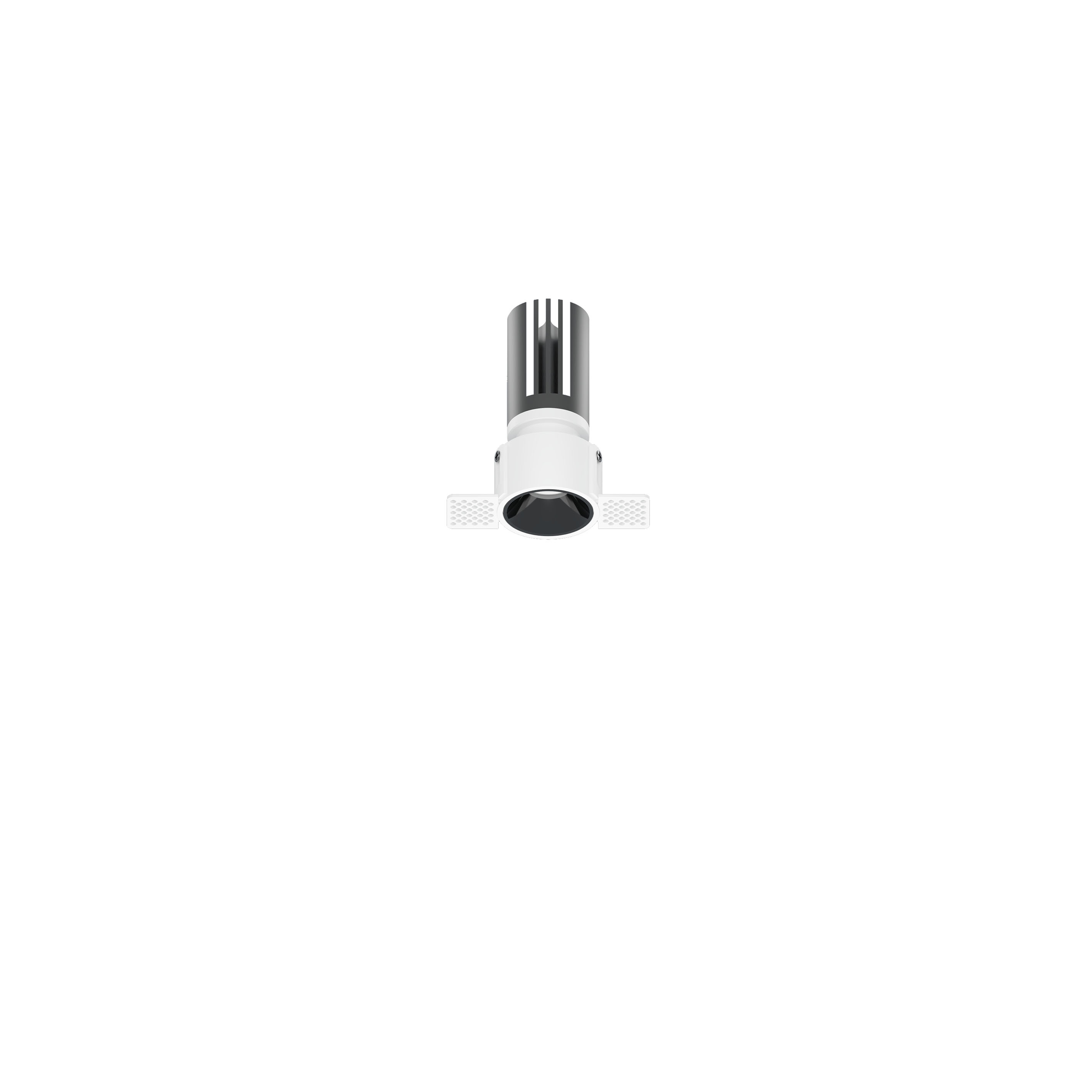

57.03511 NOORLY Recessed Downlight Trimless
| Connected Load | 6W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 20D/26D/29D/54D |
| Cut Out | 35mm |
| Light Distribution | 57.03511 NOORLY Recessed Downlight Trimless |
| Luminous Flux Of The Luminaire | 288lm |
| Luminaire Efficacy | 48lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.2Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 26° | ||
| 1 | 1091.02 | 0.47 |
| 2 | 272.76 | 0.95 |
| 3 | 121.22 | 1.42 |
| 4 | 68.19 | 1.90 |
| 5 | 43.64 | 2.37 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories
Photometric Files

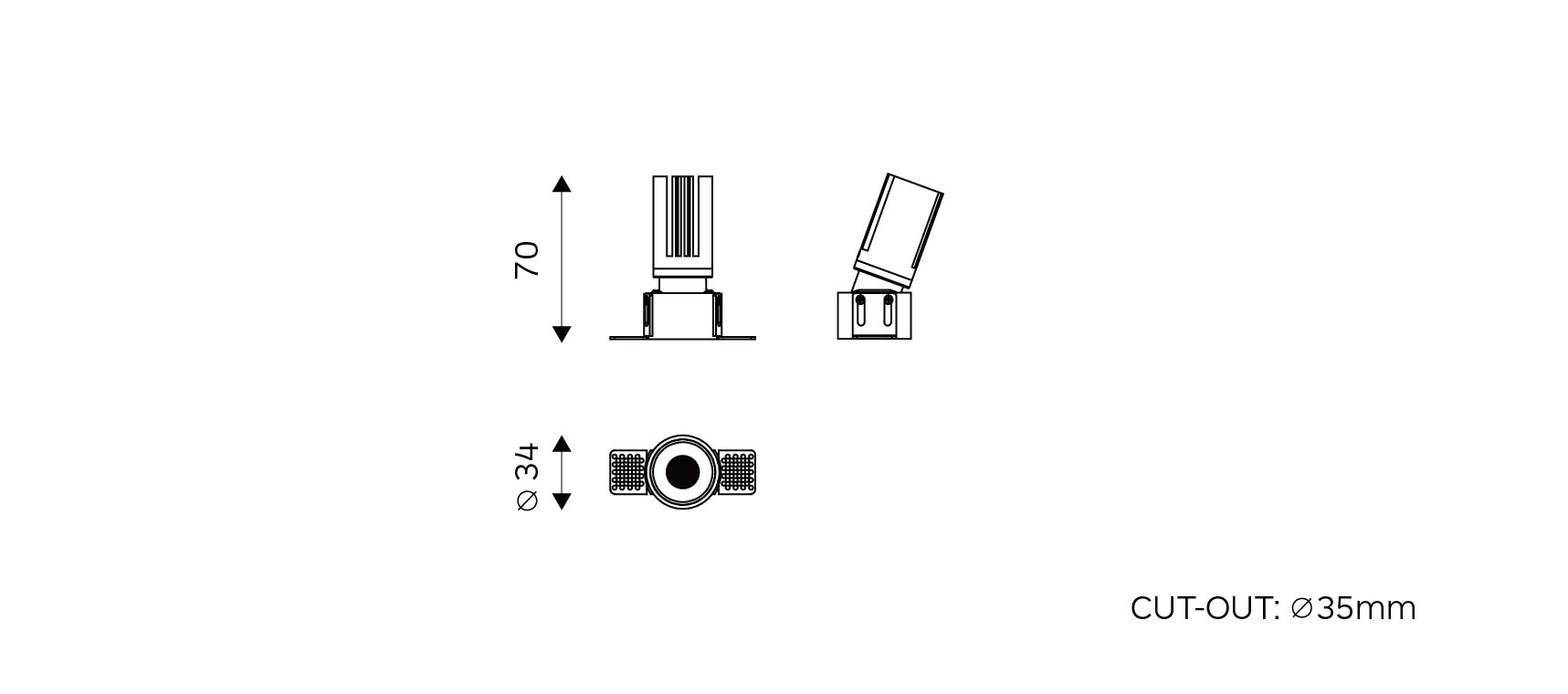

Technical Drawings
