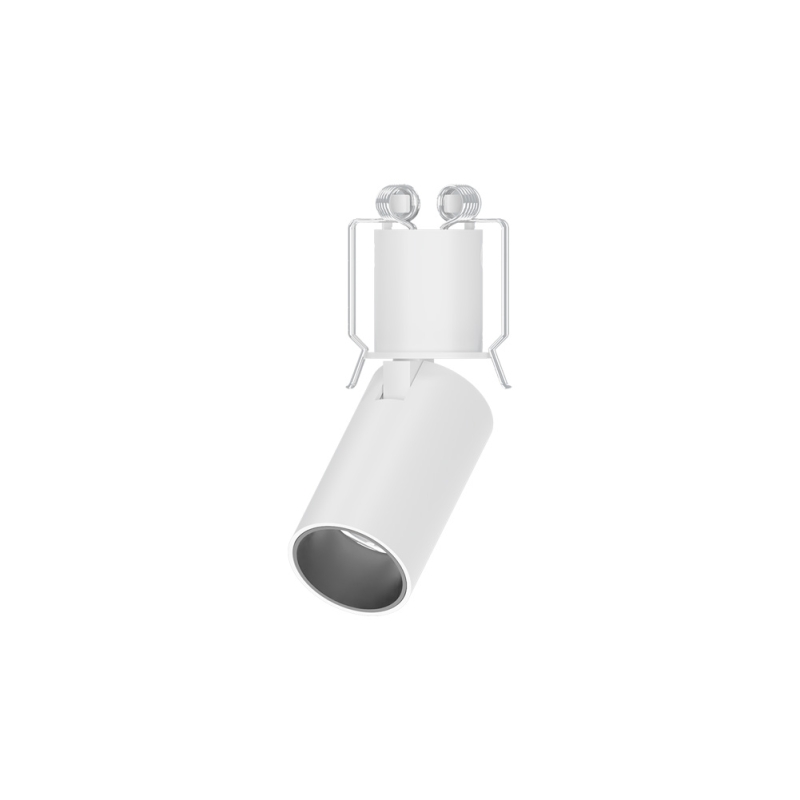

56.02311NOVAL Semi-recessed Downlight
| Connected Load | 4W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 17D/26D/31D/53D |
| Cut out | 23mm |

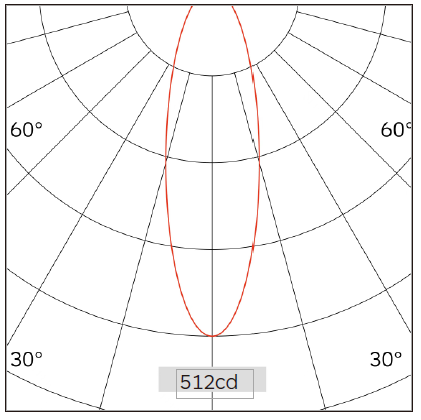

| Light Distribution | 56.02311NOVAL Semi-recessed Downlight |
| Luminous Flux Of The Luminaire | 197lm |
| Luminaire Efficacy | 52lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.18Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 31° | ||
| 1 | 512.78 | 0.56 |
| 2 | 128.20 | 1.12 |
| 3 | 56.98 | 1.67 |
| 4 | 32.05 | 2.23 |
| 5 | 20.51 | 2.79 |
Mainly used in high-end commercialspace (clothing shops, furniture shopsand other brand boutiques, car displays.jewelry, star hotels, high-end clubs.museums, chain stores. brand saleshalls. professional windows, countersand other accent lighting places).
Suitable accessories
Photometric Files

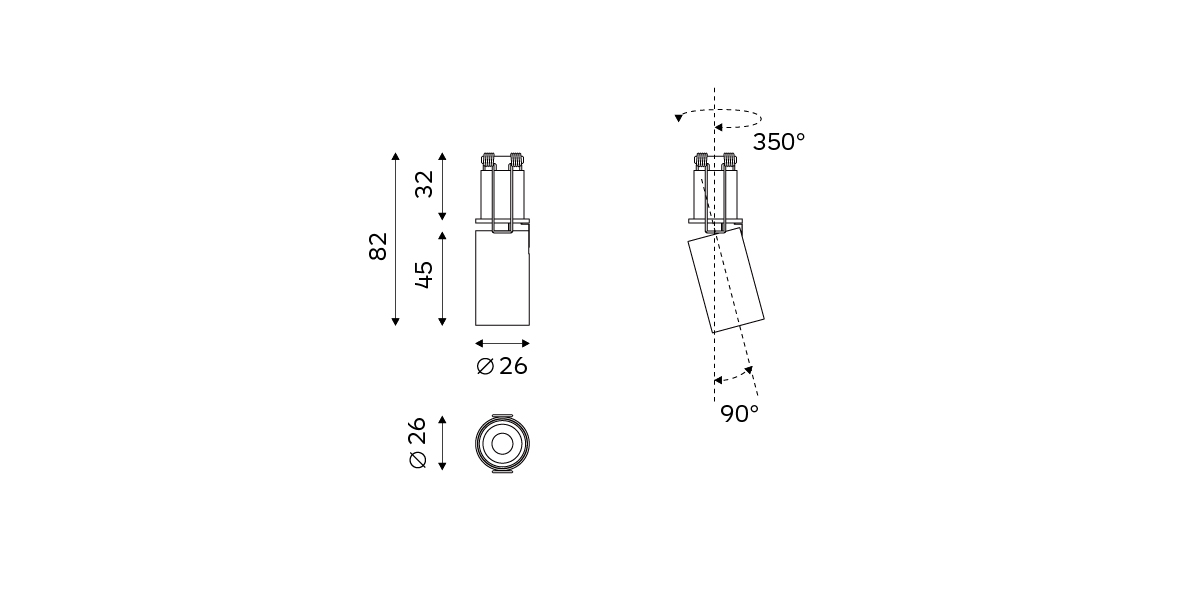

Technical Drawings
