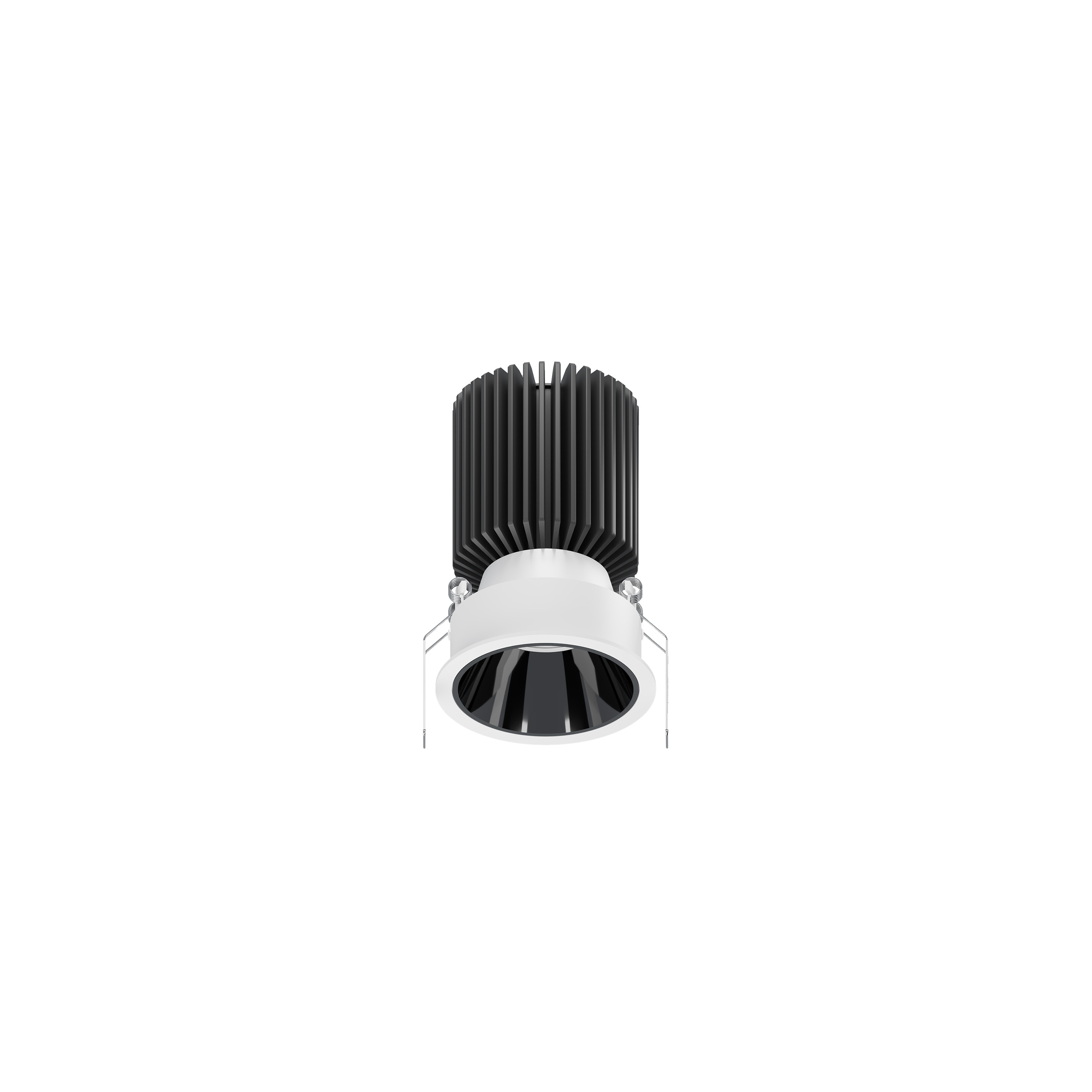

51.07518 SLIM Recessed Downlight Fixed
| Connected Load | 24W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 30D/40D/46D/52D |
| Cut Out | 75mm |

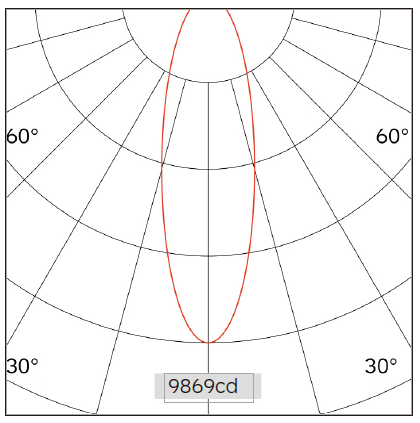

| Light Distribution | 51.07518 SLIM Recessed Downlight Fixed |
| Luminous Flux Of The Luminaire | 2798lm |
| Luminaire Efficacy | 111lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.5Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 31° | ||
| 1 | 9869.85 | 0.56 |
| 2 | 2467.46 | 1.11 |
| 3 | 1096.65 | 1.67 |
| 4 | 616.87 | 2.23 |
| 5 | 394.79 | 2.78 |
Application areas: High end residential and retail projects, hotels, museums and galleries.
Suitable accessories
-
AWhite
-
BChrome
-
CGun Black
-
DMatt Black
Download
Photometric Files

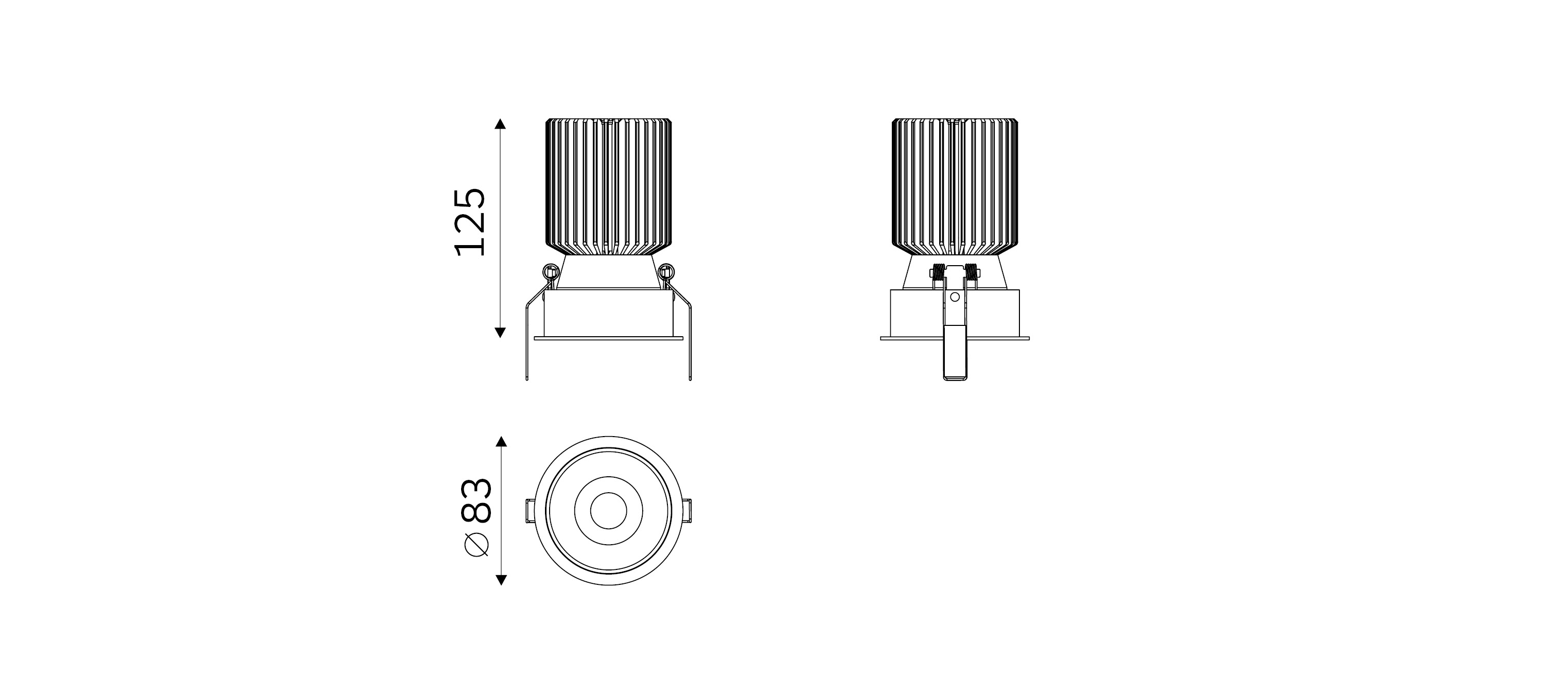

Technical Drawings
