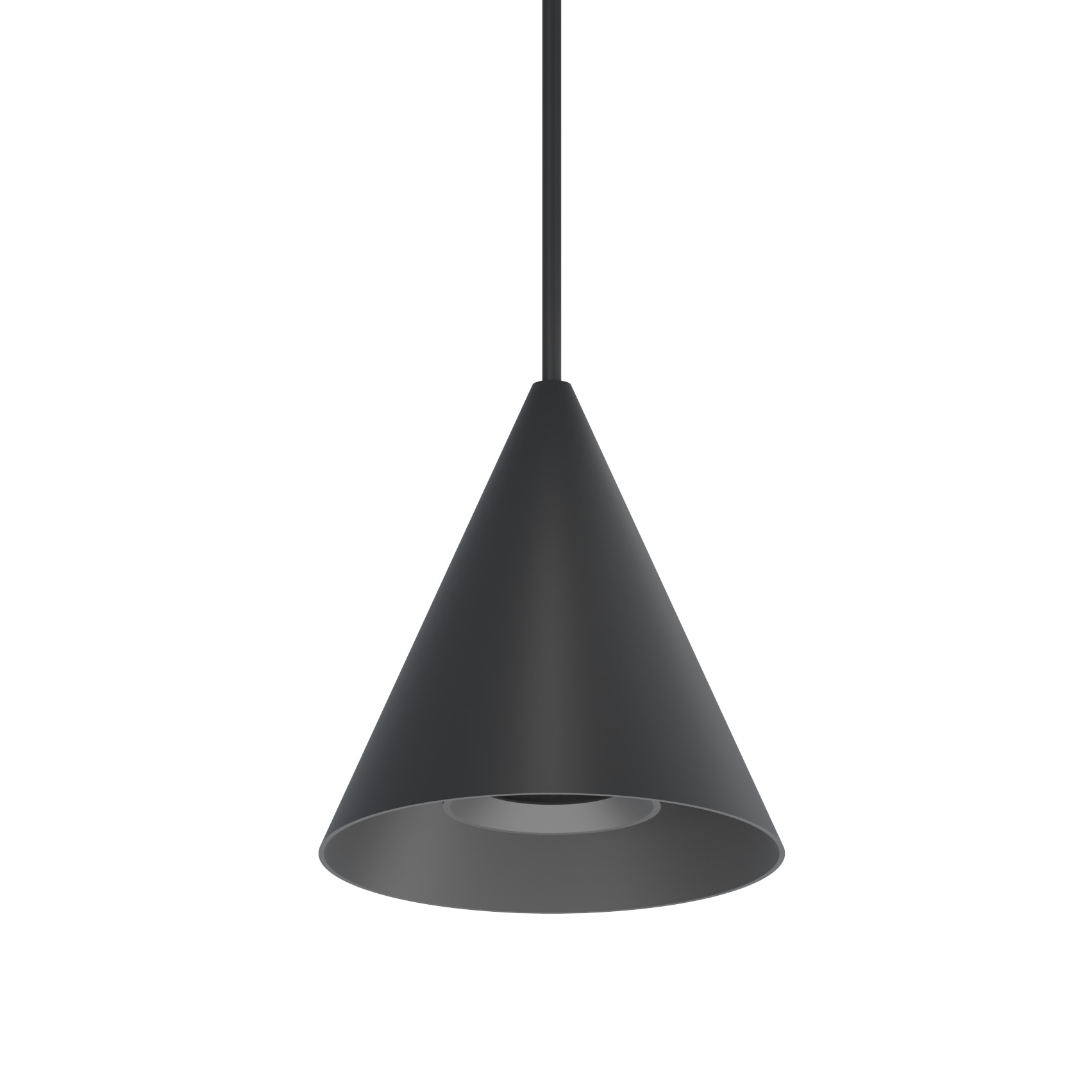

81.09711 DELTA Pendant Lighting
| Connected Load | 15.4W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 13D-44D |
| Installation method | Surface Mounted |
| Light Distribution | 81.09711 DELTA Pendant Lighting |
| Luminous Flux Of The Luminaire | 455lm |
| Luminaire Efficacy | 30lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.6Kg |
| Technical Region | 220-240V 50/60Hz |

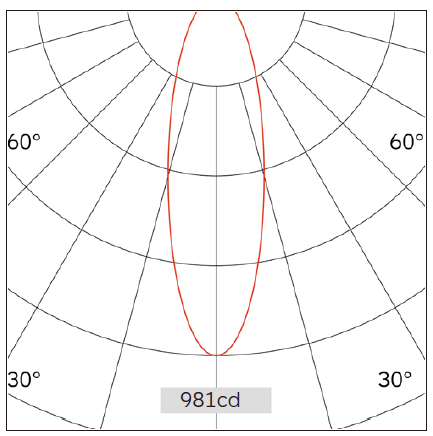

Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 44° | ||
| 1 | 981.98 | 0.81 |
| 2 | 245.49 | 1.62 |
| 3 | 109.11 | 2.43 |
| 4 | 61.37 | 3.24 |
| 5 | 39.28 | 4.05 |
Mainly used in high-end commercial space (clothing shops, furniture shop sand other brand boutiques, car displays. Jewelry, star hotels, high-end clubs.museums, chain stores. Brand sales halls. Professional windows, countermand other accent lighting places).
Suitable accessories
Download
Photometric Files

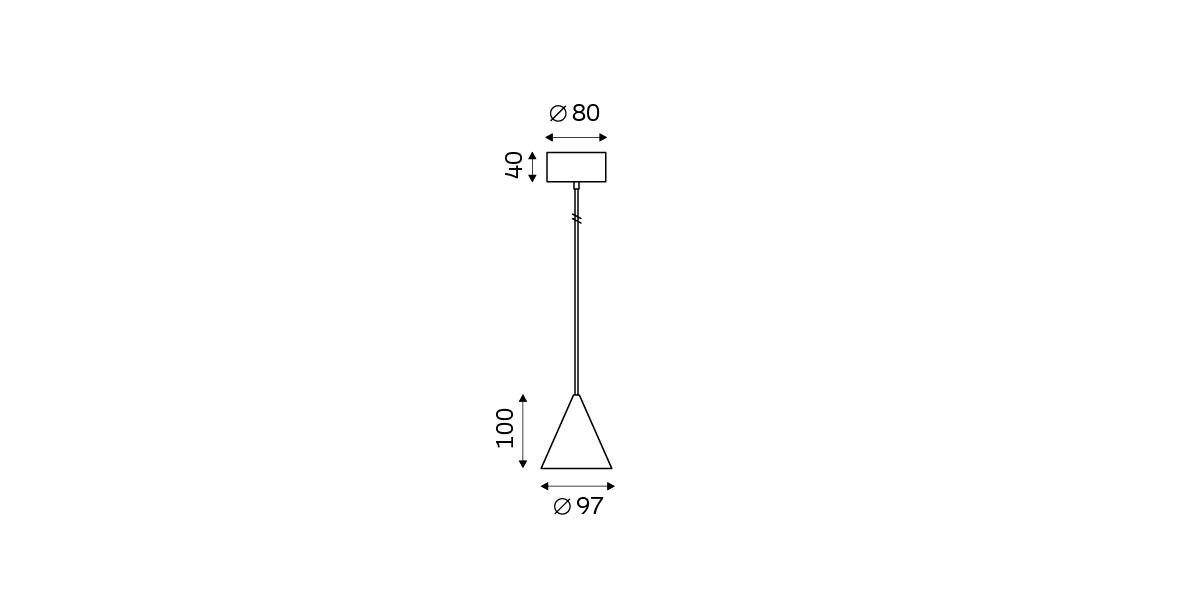

Technical Drawings
