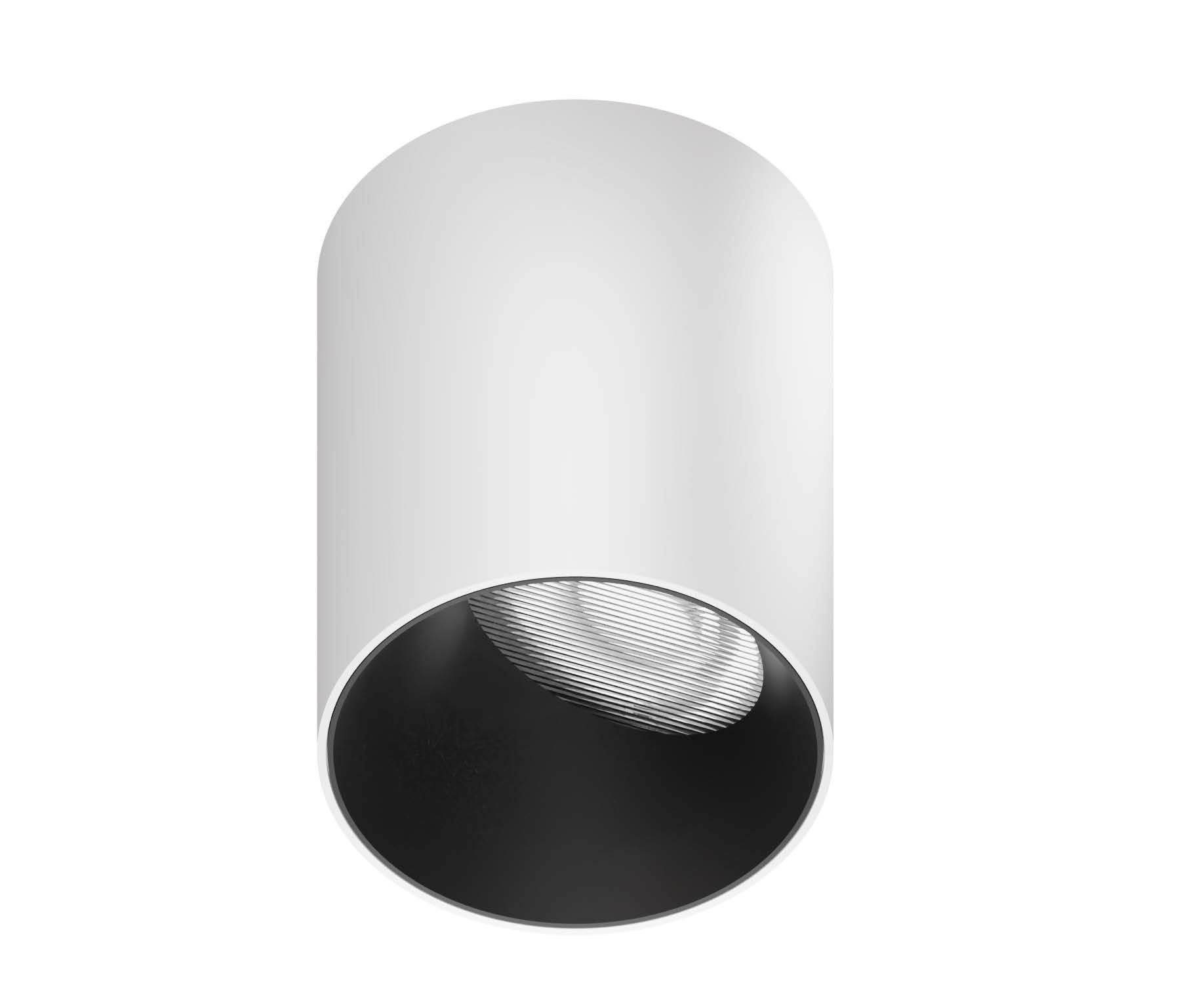

91.09015 WASHO Surface Mounted Lighting
| Connected Load | 28W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | ww Tilted 22° Beam 52° |

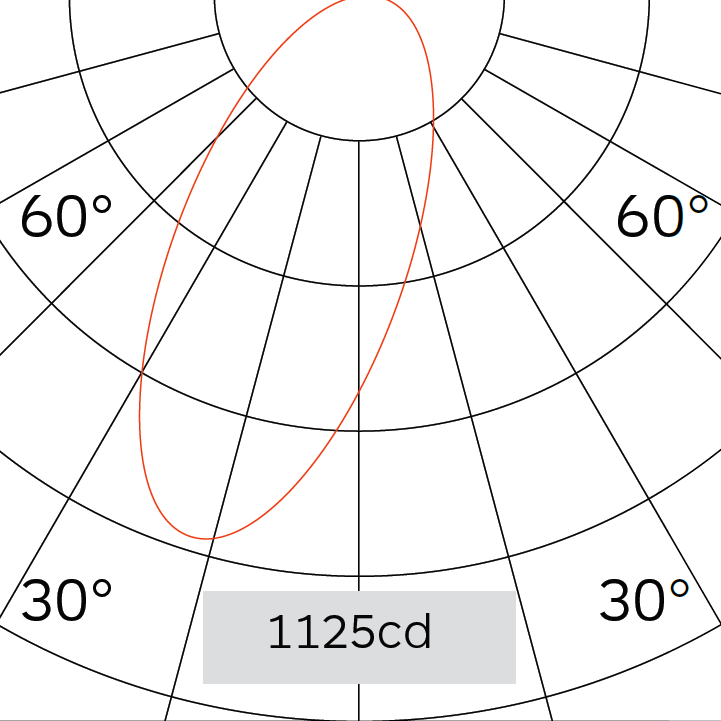

| Light Distribution | 91.09015 WASHO Surface Mounted Lighting |
| Luminous Flux Of The Luminaire | 1842lm |
| Luminaire Efficacy | 65.8lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | 1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.5Kg |
| Technical Region | Input 48V |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| ww | ||
| 1.0 | 1125.53 | 1.14 |
| 2.0 | 281.38 | 2.28 |
| 3.0 | 125.06 | 3.43 |
| 4.0 | 70.35 | 4.57 |
| 5.0 | 45.02 | 5.71 |
Designed for environments requiring refined and focused lighting, including apparel shops, furniture galleries, branded retail outlets, auto display centers, jewelry and watch stores, luxury hotels, commercial chains, museums, brand experience halls, shop counters, and similar accent lighting scenes.
Suitable accessories
Photometric Files

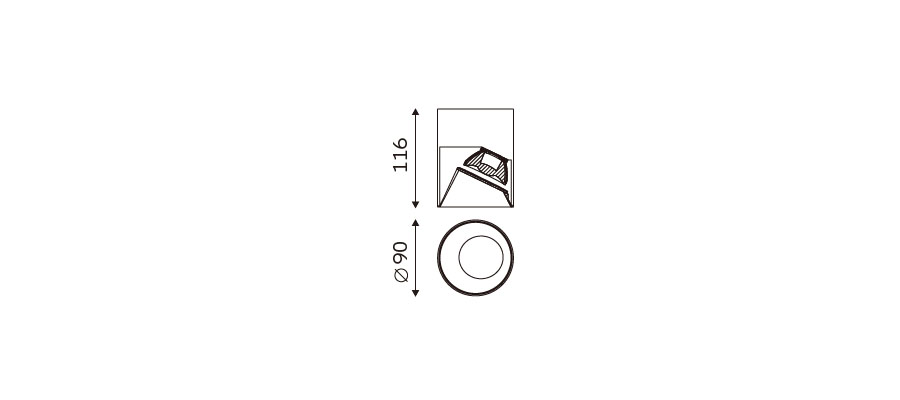

Technical Drawings
