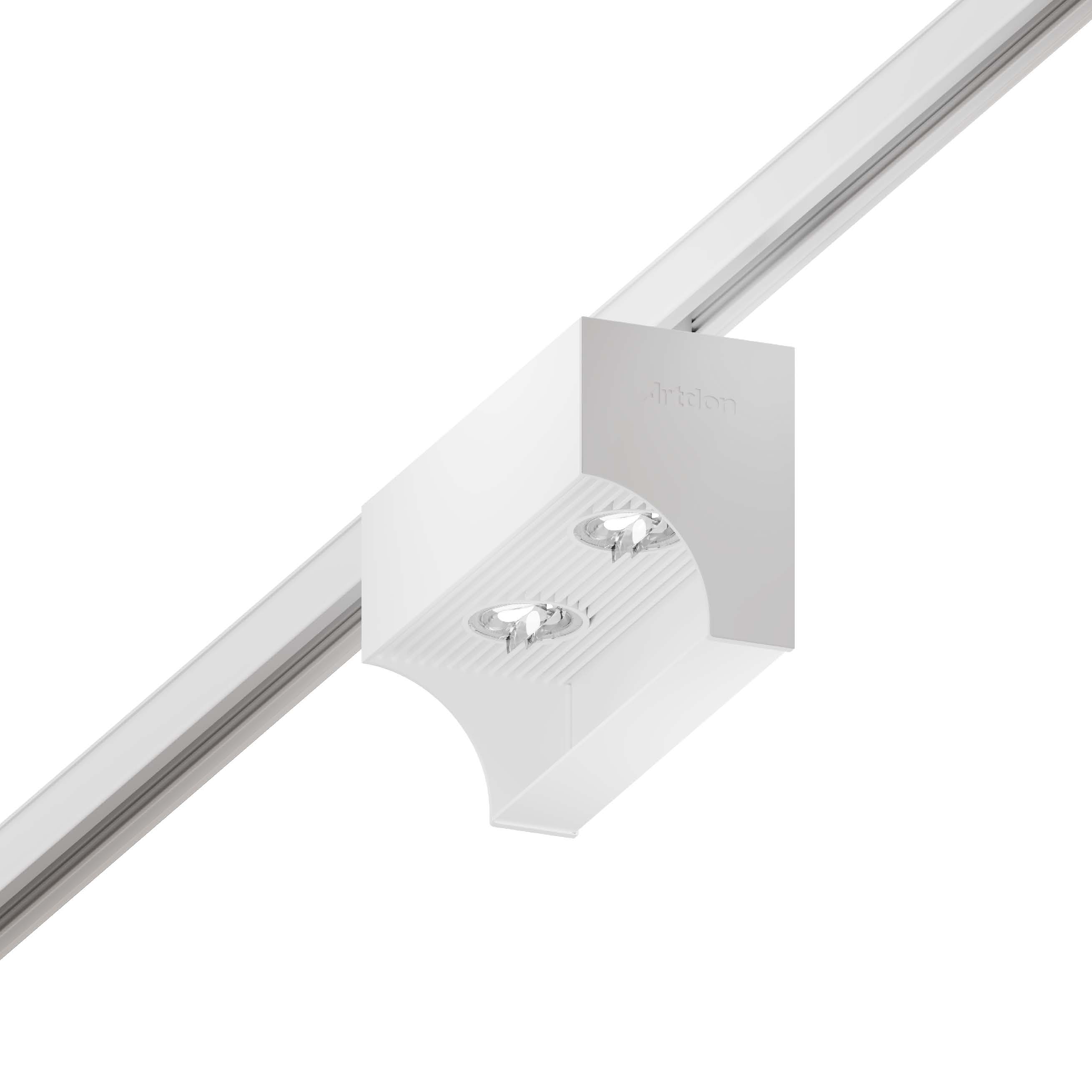

33.10011 ARCWASH Track Lighting
| Connected Load | 50W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | ww Tilted 20° Beam 55°x55° |
| Light Distribution | 33.10011 ARCWASH Track Lighting |
| Luminous Flux Of The Luminaire | 4275lm |
| Luminaire Efficacy | 88.5lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | 1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 3Kg |
| Technical Region | Input 48V |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| ww | ||
| 1.0 | 2360.89 | 0.84 |
| 2.0 | 590.22 | 1.69 |
| 3.0 | 262.32 | 2.53 |
| 4.0 | 147.56 | 3.37 |
| 5.0 | 94.44 | 4.21 |
A high-performance, polarized track-mounted luminaire engineered specifically for vertical illuminationwith precision.Professional-grade polarized optical design ensures a clean light cut-off and minimal glare
Suitable accessories
Photometric Files

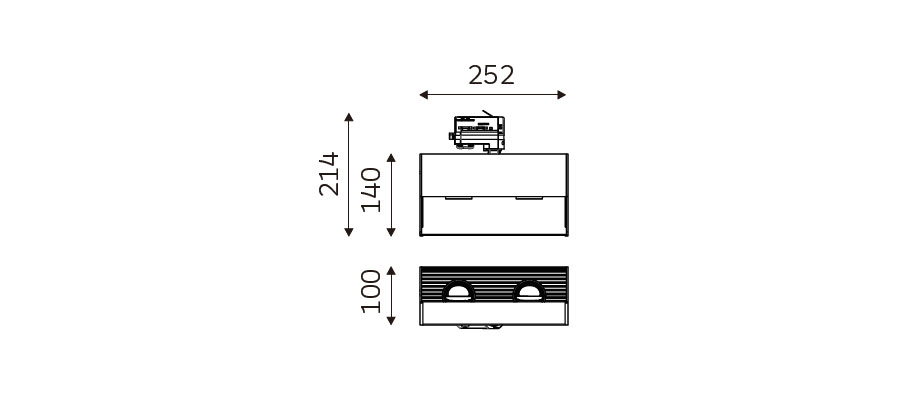

Technical Drawings
